佳鑫能塑料防水接头（连体）
广州佳鑫电器有限公司创建于2003年,现拥有广州、东莞两大生产加工中心，是一家专业生产电气连接产品的企业，多年来坚持和高等院校的实验室合作进行产品开发与优化，不断提升产品创新力，努力开拓市场，使公司得以快速发展。 凭借雄厚的技术实力、完善的工艺流程、强大的生产能力已逐渐成为业界领先的防水连接方案提供商。严格的质量管理,先进的工艺作保障,不断提升产品质量，追求质量是佳鑫人永恒的主题。 公司秉承“为客户创造价值、为员工谋福利、为社会承担责任”的企业经营理念,持续改善经营管理模式。以高性价比的产品、专业的服务、锐意进取的决心和勇气更好地服务客户!
详细介绍
塑料防水接头（连体）
公制螺纹M系列
咨询热线：020-36700481
公司网站：http://www.jx218.com
24H服务热线：13728087739
螺牙规格:公制牙M(Metric)，符合欧盟规范。

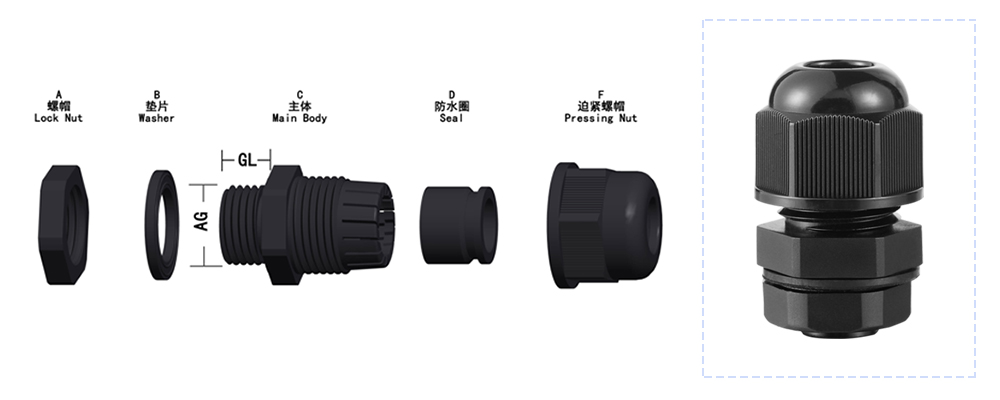

产品材质:A.C.F部分采用UL认可之尼龙PA66(防火等UL94V-2)制成;(可定制UL认可的V-O防火等级尼龙原料);B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
工作温度:静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃。
颜色:黑色、灰色、（特殊颜色可定做)
保护等级:IP68-10
产品特性:夹紧爪与密封件特殊之设计,配合迫紧头装配省时便利，
夹紧电缆范围大，抗拉力特强，可防水、防尘、防盐、耐酸碱、酒精、油、脂及一般溶剂。
使用方法:佳鑫塑料电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上也可以根据选用螺纹接入进出口为内螺纹的电动设备上。
Guangzhou Jiaxin Electric Appliance Co., Ltd
Hotline: 020-36700481
company website: http://www.jx218.com
24h service hotline: 13728087739
Screw specification: high quality plastic cable connector with metric tecth (Metric)
Material Material PartA.C.F is made of UL-approved nylon PA66 (UL94v-2 for fre prevention, etc.); Part BD is made of EPDMweatherproof rubber.Customized cold and high temperature resistart rubber, acid and alkaliresistant, chemical and corrosionresistant rubber.
Working temperature: static - 40 '℃ to 100 ℃ , or instantaneous heat resitance to 120 ℃ ; oynamic - 20 ℃ to 8o ℃ ,orinstantaneous heat resistance to 100 ℃ .
Color: black, gray, (special color can be customized)Protection Level: IP68-10
Product characteristics: special design of clamping claws and seals, tme-saving and corvenient assemby with pressing head,wide clamping cable range, strong tensile force, water-proof, dust-proof ,salt-proof, acid-alkll-proof, alcohol, ol, grease andgeneral solvents.
Usage: Jiaxin Flastic Cable Waterproof Joint is a matching product of cable. The jont can lock the cable, the other end can beconnected to the equipment box, or according to the selecton of threads, it can be connected to the electic equipment with theimport and export threads.
塑料防水接头（连体）
公制螺纹M系列
| 编号 | 螺牙规格 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包装 |
| Item.No. | Thread | Cable Range | Thread O.D. | Thread Length | Spanner Size | Std.Pkg |
| Ф(mm) | AG(mm) | GL(mm) | A&F(mm) | (pcs) | ||
| PAB-MG8 -6 | M8x1.25 | 2.5-4 | 8 | 7.5 | 12.0/13 | 50 |
| PAB-MG10 -6 | M10x1.5 | 2.5-6 | 10 | 8 | 12.0/15 | 50 |
| PAB-MG12S -6 | M12x1.5 | 3-6.5 | 12 | 8.5 | 18/15 | 50 |
| PAB-MG12SL-6 | 3-6.5 | 12 | 15 | 18/15 | 50 | |
| PAB-MG12 -5 | 3-5.5 | 12 | 8.5 | 18/19 | 50 | |
| PAB-MG12 -7 | 4.0-8 | 12 | 8.5 | 18/19 | 50 | |
| PAB-MG12L -5 | 3-5.5 | 12 | 15 | 18/19 | 50 | |
| PAB-MG12L -7 | 4.0-8 | 12 | 15 | 18/19 | 50 | |
| PAB-MG16S -8 | M16x1.5 | 4.0-8 | 16 | 10 | 22/19 | 50 |
| PAB-MG16SL-8 | 4.0-8 | 16 | 15 | 22/19 | 50 | |
| PAB-MG16 -7 | 3.0-7 | 16 | 10 | 22/22 | 50 | |
| PAB-MG16 -10 | 5.0-10 | 16 | 10 | 22/22 | 50 | |
| PAB-MG16L -7 | 3.0-7 | 16 | 15 | 22/22 | 50 | |
| PAB-MG16L -10 | 5.0-10 | 16 | 15 | 22/22 | 50 | |
| PAB-MG18 -7 | M18x1.5 | 3.0-7 | 18 | 10 | 24/22 | 50 |
| PAB-MG18 -10 | 5.0-10 | 18 | 10 | 24/22 | 50 | |
| PAB-MG18L -7 | 3.0-7 | 18 | 15 | 24/22 | 50 | |
| PAB-MG18L -10 | 5.0-10 | 18 | 15 | 24/22 | 50 | |
| PAB-MG20S -12.5 | M20x1.5 | 6-12.5 | 20 | 10 | 27/24 | 50 |
| PAB-MG20 -11 | 5.0-11 | 20 | 11 | 27/27 | 50 | |
| PAB-MG20 -13.5 | 8.5-14 | 20 | 11 | 27/27 | 50 | |
| PAB-MG20L -11 | 5.0-11 | 20 | 15 | 27/27 | 50 | |
| PAB-MG20L -13.5 | 8.5-14 | 20 | 15 | 27/27 | 50 | |
| PAB-MG25S -14 | M25x1.5 | 8.5-14 | 25 | 11.6 | 33/27 | 50 |
| PAB-MG25 -13 | 7.0-13 | 25 | 11.6 | 33/33 | 50 | |
| PAB-MG25 -18 | 12.5-18 | 25 | 11.6 | 33/33 | 50 | |
| PAB-MG25L -16 | 7.0-13 | 25 | 15 | 33/33 | 50 | |
| PAB-MG25L -18 | 12.5-18 | 25 | 15 | 33/33 | 50 | |
| PAB-MG32S -17.5 | M32x1.5 | 11-17.5 | 32 | 15 | 36/42 | 20 |
| PAB-MG32 -22 | 14-22 | 32 | 15 | 41/42 | 20 | |
| PAB-MG32 -25 | 17-25 | 32 | 15 | 41/42 | 20 | |
| PAB-MG36 -22 | M36x1.5 | 14-22 | 36 | 12 | 45/42 | 20 |
| PAB-MG36 -25 | 17-25 | 36 | 12 | 45/42 | 20 | |
| PAB-MG40 -26.5 | M40x1.5 | 18-25 | 40 | 15 | 50/52 | 10 |
| PAB-MG40 -31 | 23-32 | 40 | 15 | 50/52 | 10 | |
| PAB-MG50 -32 | M50x1.5 | 25-32 | 50 | 15 | 62/62 | 10 |
| PAB-MG50 -41 | 30-41 | 50 | 15 | 62/62 | 10 | |
| PAB-MG63 -41 | M63x1.5 | 29-38 | 63 | 18 | 75/65 | 10 |
| PAB-MG63 -45 | 35-45 | 63 | 18 | 75/65 | 10 |
