佳鑫能金属防水T型接头铜镀镍防水接头
广州佳鑫电器有限公司创建于2003年,现拥有广州、东莞两大生产加工中心，是一家专业生产电气连接产品的企业，多年来坚持和高等院校的实验室合作进行产品开发与优化，不断提升产品创新力，努力开拓市场，使公司得以快速发展。 凭借雄厚的技术实力、完善的工艺流程、强大的生产能力已逐渐成为业界领先的防水连接方案提供商。严格的质量管理,先进的工艺作保障,不断提升产品质量，追求质量是佳鑫人永恒的主题。 公司秉承“为客户创造价值、为员工谋福利、为社会承担责任”的企业经营理念,持续改善经营管理模式。以高性价比的产品、专业的服务、锐意进取的决心和勇气更好地服务客户!
详细介绍

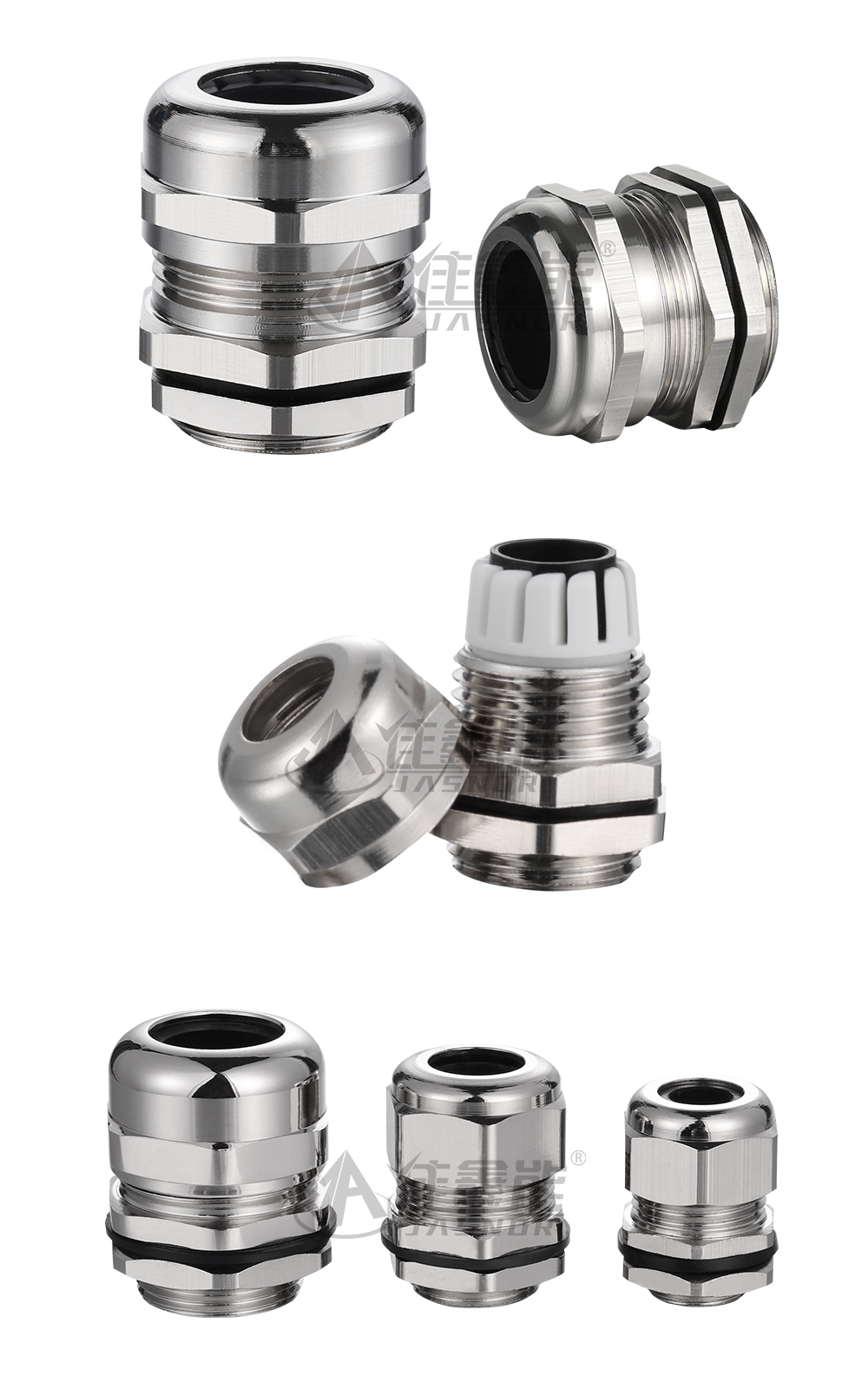

佳鑫能金属防水T型接头铜镀镍防水接头
公制螺纹M系列
咨询热线：020-36700481
公司网站：http://www.jx218.com
24H服务热线：13728087739
螺牙规格:德制螺纹PG系列，符合欧盟规范。

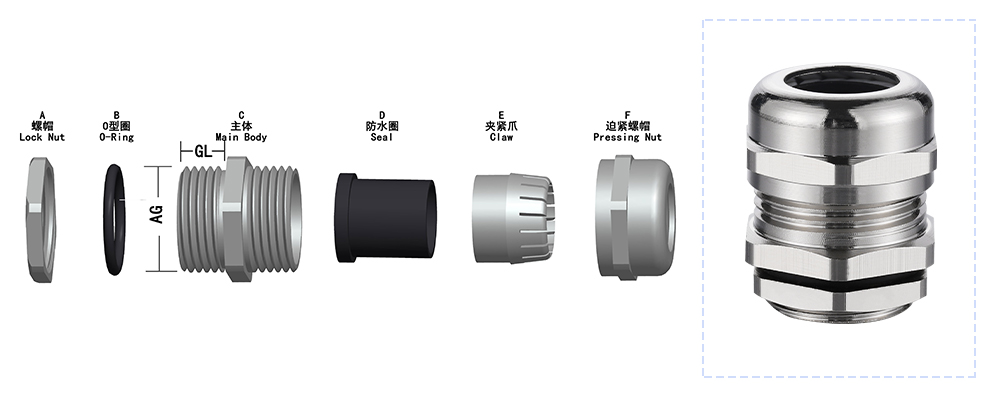

产品材质:接头A、C、F部位采用黄铜镀镍/不锈钢/铝合金制成，夹紧件采用尼龙塑料（PA）制成，密封件和〇型密封圈均采用丁腈橡胶（NBR)/硅橡胶制成。
产品认证:欧洲CE认证、欧洲 ROHS认证、欧洲 REACH认证防护等级:在规定的卡口范围内，并使用〇型密封圈旋紧迫紧头，达到IP68-10巴压力。
工作温度:静态:-40℃到100℃，短时间达120℃。动态:-20℃到80℃，短时间达100℃。
螺纹长度:短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。
产品特性:特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利，夹紧电缆范围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、酒精、油脂及一般溶剂。
使用方法:金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动设备上。
更多选择:可根据客户实际需要，特别定制。需要订购时欢迎来电咨询。
Guangzhou Jiaxin Electric Appliance Co., Ltd
Hotline: 020-36700481
company website: http://www.jx218.com
24h service hotline: 13728087739
Screw thread specification: German thread PG series, in line with eu specifications.
Material: joint A, C, F parts are made of brass nickel plating/stainless steelaluminum alloy, clamping parts are made ofnylon plastic(PA), seals and o-ring are made of NBR/silicone rubber.
Product certification: European CE certification, European ROHS certification, European REACH certification protectionlevel: in the specified bayonet range, and the use of o-type sealing ring screw tight head, up to ip68-10 bar pressure.Working temperature: static: - 40 ℃ to 100 ℃ , a short period of time up to 120 '℃. Dynamic: - 20 ℃ to 80 '℃ , a shortperiod of time up to 100 ℃
Thread length: short thread is suitable for opening of thin machine plate or equipment with internal thread, long thread issuitable for joining thick machine plate. Thread lengthening can be customized.
Product features: special clamping claw and clamping ring with concave and convex buckle design, with the clampinghead assembly time saving convenience, clamping cable range, stong tensile force, waterproof, dustproof, saltresistance,acid and alkali resistance,alcohol, grease and general solvents.
Usage:. the metal cable waterproof connector is the supporting product of the cable, the connector can lock the cable, theother end can be connected to the equipment box, or according to the choice of thread access to the import and exportof the internal thread of the electric equipment.
More options: can be customized according to the actual needs of customers. Welcome to inquire when you need toorder.
金属防水T型接头铜镀镍防水接头
公制螺纹M系列
| 产品编号Item.No. | 螺牙规格Thread | 适用电缆Φ（mm）Cable Range | 螺纹外径AG(mm) Thread O.D | 机板口径(mm) Panel Mounting Hole | 螺纹长度GL(mm) Thread length | 接合长度(mm) Joint length | 扳手径(mm) Spanner Size |
| NBT-M10-06 | M10x1.5 | 6.5-3 | 10 | 10-10.2 | 6 | 19 | 14 |
| NBT-M12-06 | M12x1.5 | 6.5-3 | 12 | 12-12.2 | 6 | 19 | 14 |
| NBT-M12-08 | M12x1.5 | 8--4 | 12 | 12-12.2 | 7 | 19 | 14/17 |
| NBT-M14-06 | M14x1.5 | 6.5-3 | 14 | 14-14.2 | 6 | 19 | 14/16 |
| NBT-M14-08 | M14x1.5 | 8--4 | 14 | 14-14.2 | 7 | 19 | 16/18 |
| NBT-M16-08 | M16x1.5 | 8--4 | 16 | 16-16.2 | 7 | 20 | 17/18 |
| NBT-M18-10 | M18x1.5 | 10--6 | 18 | 18-18.2 | 7 | 21 | 20/20 |
| NBT-M20-12 | M20x1.5 | 12--8 | 20 | 20-20.2 | 8 | 22 | 22/22 |
| NBT-M22-14 | M22x1.5 | 14--10 | 22 | 22-22.2 | 8 | 23 | 24/24 |
| NBT-M25-14 | M25x1.5 | 14--10 | 25 | 25-25.2 | 8 | 25 | 27 |
| NBT-M25-16 | 16--11 | 25 | 25-25.2 | 8 | 27 | 27/28 | |
| NBT-M25-18 | 18-13 | 25 | 25-25.2 | 8 | 27 | 27/30 | |
| NBT-M27-18 | M27x1.5(2) | 18-13 | 27 | 27-27.2 | 8 | 27 | 30 |
| NBT-M28-18 | M28x1.5(2) | 18-13 | 28 | 28-28.2 | 8 | 27 | 30 |
| NBT-M30-18 | M30x1.5(2) | 18-13 | 30 | 30-30.2 | 8 | 29 | 30/34 |
| NBT-M32-22 | M32x1.5(2) | 22-15 | 32 | 32-32.2 | 9 | 29 | 34 |
| NBT-M33-22 | M33x1.5(2) | 22-15 | 33 | 33-33.2 | 9 | 29 | 34/36 |
| NBT-M36-25 | M36x1.5(2) | 25-18 | 36 | 36-36.2 | 9 | 31 | 40 |
| NBT-M37-25 | M37x1.5(2) | 25-18 | 37 | 37-37.2 | 9 | 31 | 40 |
| NBT-M40-25 | M40x1.5(2) | 25-18 | 40 | 40-40.2 | 10 | 31 | 43 |
| NBT-M40-30 | 30-22 | 40 | 40-40.2 | 10 | 35 | 45 | |
| NBT-M42-28 | M42x1.5(2) | 28-22 | 42 | 42-42.2 | 10 | 35 | 45 |
| NBT-M47-32 | M47x1.5(2) | 32-25 | 47 | 47-47.2 | 10 | 37 | 50/52 |
| NBT-M48-32 | M48x1.5(2) | 32-25 | 48 | 48-48.2 | 10 | 37 | 50/52 |
| NBT-M50-32 | M50x1.5(2) | 32-25 | 50 | 50-50.2 | 10 | 37 | 50/55 |
| NBT-M54-38 | M54x1.5(2) | 38-32 | 54 | 54-54.2 | 12 | 38 | 58 |
| NBT-M56-38 | M56x1.5(2) | 38-32 | 56 | 56-56.2 | 12 | 38 | 58 |
| NBT-M60-44 | M60x1.5(2) | 44-37 | 60 | 60-60.2 | 12 | 38 | 64 |
| NBT-M63-44 | M63x1.5(2) | 44-37 | 63 | 63-63.2 | 12 | 38 | 64/68 |
| NBT-M72-52 | M72x2 | 52-42 | 72 | 72-72.2 | 15 | 42 | 76/78 |
| NBT-M75-52 | M75x2 | 52-42 | 75 | 75-75.2 | 15 | 42 | 76/78 |
| NBT-M80-60 | M80x2 | 60-55 | 80 | 80-80.2 | 16 | 45 | 86/88 |
| NBT-M85-70 | M85x2 | 70-65 | 85 | 85-85.2 | 18 | 45 | 98 |
| NBT-M88-70 | M88x2 | 70-65 | 88 | 88-88.2 | 18 | 45 | 98 |
| NBT-M100-80 | M100X2 | 80-75 | 100 | 100-100.2 | 20 | 45 | 110 |
