佳鑫能金属防水C型接头铜镀镍高款防水接头
广州佳鑫电器有限公司创建于2003年,现拥有广州、东莞两大生产加工中心，是一家专业生产电气连接产品的企业，多年来坚持和高等院校的实验室合作进行产品开发与优化，不断提升产品创新力，努力开拓市场，使公司得以快速发展。 凭借雄厚的技术实力、完善的工艺流程、强大的生产能力已逐渐成为业界领先的防水连接方案提供商。严格的质量管理,先进的工艺作保障,不断提升产品质量，追求质量是佳鑫人永恒的主题。 公司秉承“为客户创造价值、为员工谋福利、为社会承担责任”的企业经营理念,持续改善经营管理模式。以高性价比的产品、专业的服务、锐意进取的决心和勇气更好地服务客户!
详细介绍

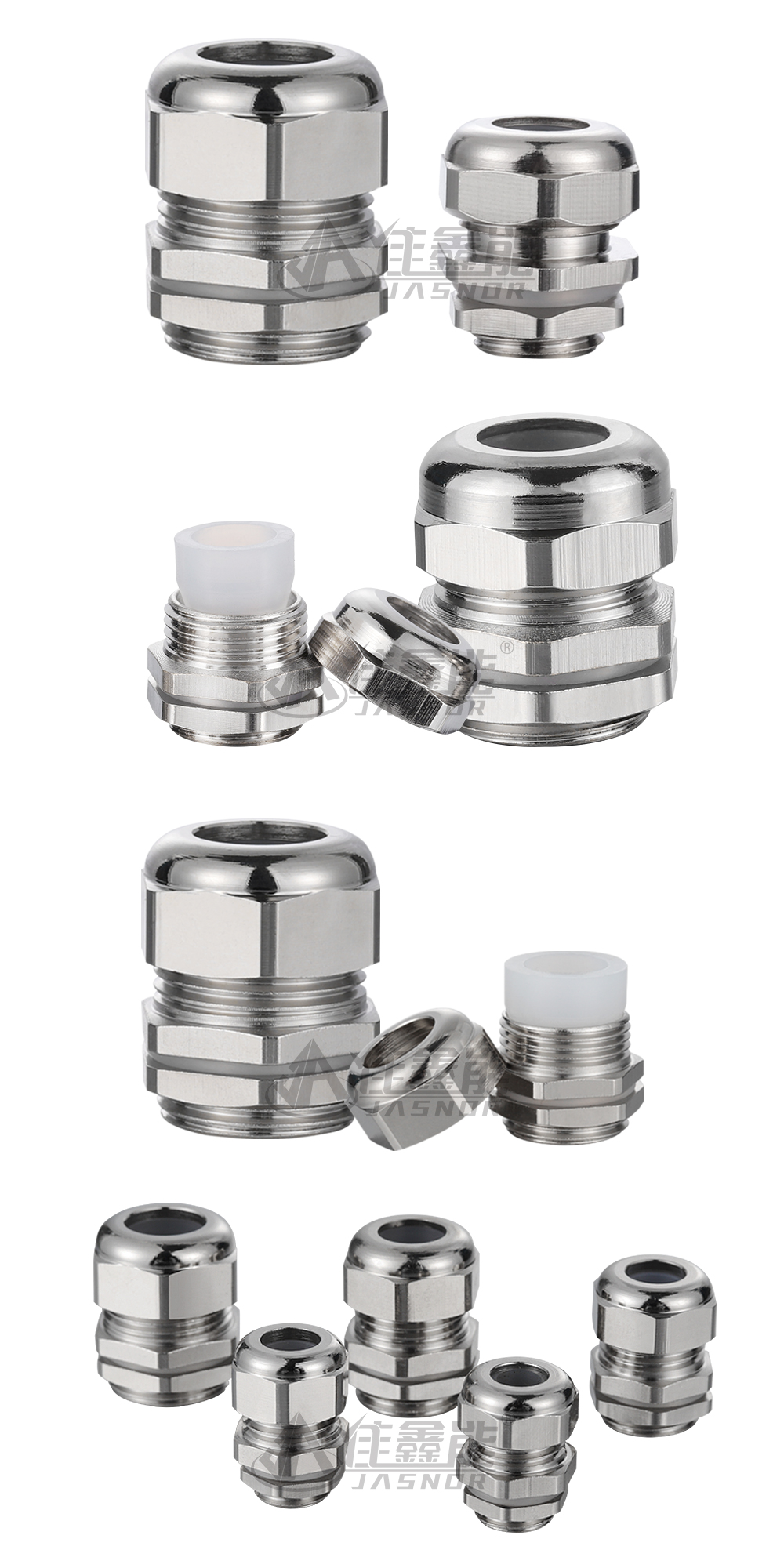

金属防水C型接头铜镀镍高款防水接头
公制螺纹M系列
咨询热线：020-36700481
公司网站：http://www.jx218.com
24H服务热线：13728087739
螺牙规格:公制螺纹M(Metric)系列，符合欧盟规范。

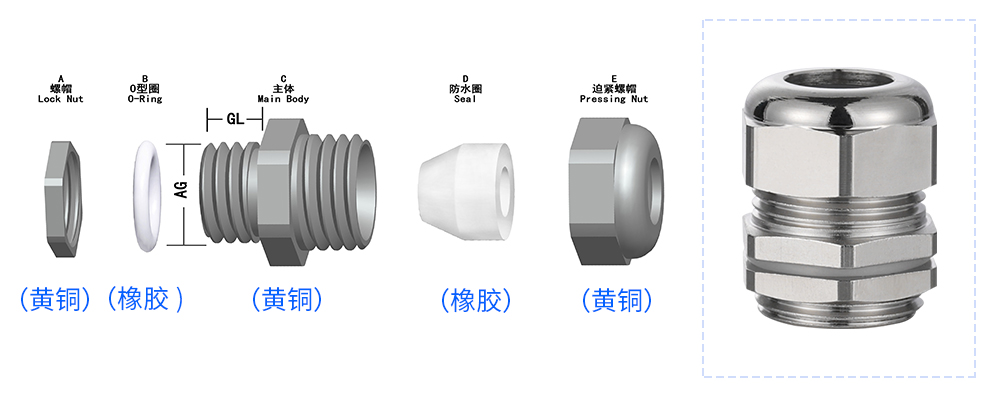

产品材质:A、C、E部位采用黄铜镀镍黄铜镀镍/不锈钢制成，B、D部位采用硅胶制成。
产品认证:欧洲CE认证、欧洲ROHS认证、欧洲 REACH认证防护等级:在规定的卡口范围内，并使用密封圈旋紧迫紧接头，达到IP68防水等级。
工作温度:静态:-30℃到200℃，短时间达240℃。
螺纹长度:短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。
产品特性:特殊夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利，适合水底产品使用（不适用于油脂环境）。
使用方法:金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动设备上。
更多选择:可根据客户实际需要，特别定制。需要订购时欢迎来电咨询。
Guangzhou Jiaxin Electric Appliance Co., Ltd
Hotline: 020-36700481
company website: http://www.jx218.com
24h service hotline: 13728087739
Screw specification: metric thread M series.
Material: The parts A, C and Eare made of brass, nickel, brass, nickel, stainless steel and aluminium, and the parts B andD are made of silica gel.
Product Certification:European CE Certification,European ROHS Certfication, European REACH Cerification ProtectionLevel: Within the prescribed clamp range, and the use of O-ring screw tight, to achieve IP68-10 bar pressure.
Working temperature: Static:-40 ℃ to 100 '℃ , short time up to 120 ℃. Dynamics: - 20 ℃ to 80 ℃ , short time up to 100℃thread length: Short thread is suitable for thin machine plate opening or equipment with internal thread, long thread issuitable for joining thick machine plate.Thread lengthening can be customized.
Product Characteristics: The design of special clamping claw and the concave-convex connection of clamping ring cansave time and convenience in assembling the clamping head. The camping cable has wide scope,strong tensile force,water-proof, dust-proof, salt-proof, acid-alkali-proof, alcohol, grease and general solvents.
Usage: Metal cable waterproofing joint is the matching product of cable. The joint can lock the catble, the other end can beconnected to the equipment box, or according to the selection of threads,it can be connected to the electic equipmentwith the import and export threads.
More choices: Customized according to customer's actual needs. Welcome to inquire when you need to order.
金属防水C型接头铜镀镍高款防水接头
公制螺纹M系列
| 编号 | 螺牙规格 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包装 |
| Item.No. | Thread | Cable Range Ф | Thread O.D.C1 | Thread LengthC2 | Spanner SizeA&F | Std.Pkg |
| (mm) | (mm) | (mm) | (mm) | (pcs) | ||
| NAR-M10-06 | M10 x 1.5 | 3--5.5 | 10 | 7 | 17/14 | 50 |
| NAR-M12S-06 | M12 x1.5 | 3--6.5 | 12 | 7 | 14/14 | 50 |
| NAR-M12-07 | 3.5--7 | 12 | 8 | 17/17 | 50 | |
| NAR-M12-08 | 4.5--8 | 12 | 8 | 18/18 | 50 | |
| NAR-M16S-07 | M16 x 1.5 | 3.5--7 | 16 | 8 | 22/22 | 50 |
| NAR-M16S-08 | 4.5--8 | 16 | 8 | 22/22 | 50 | |
| NAR-M16-08 | 4--8 | 16 | 8 | 22/22 | 50 | |
| NAR-M16-10 | 6--10 | 16 | 8 | 22/22 | 50 | |
| NAR-M20S-08 | M20 x 1.5 | 5--8 | 20 | 9.5 | 24/24 | 50 |
| NAR-M20S-12 | 7--12 | 20 | 9.5 | 24/24 | 50 | |
| NAR-M20-11 | 7--11 | 20 | 9.5 | 26/26 | 50 | |
| NAR-M20-14 | 10--14 | 20 | 9.5 | 26/26 | 50 | |
| NAR-M25-16 | M25 x 1.5 | 12--16 | 25 | 12 | 32/32 | 10 |
| NAR-M25 -18 | 14-18 | 25 | 12 | 32/32 | 10 | |
| NAR-M32-22 | M32 x 1.5 | 16-22 | 32 | 12.5 | 40/40 | 10 |
| NAR-M32-25 | 18-25 | 32 | 12.5 | 40/40 | 10 | |
| NAR-M40-26 | M40 x 1.5 | 21-26 | 40 | 15 | 50/50 | 10 |
| NAR-M40-31 | 24-31 | 40 | 15 | 50/50 | 10 | |
| NAR-M50-33 | M50 x 1.5 | 25-33 | 50 | 15 | 60/60 | 5 |
| NAR-M50-41 | 31-41 | 50 | 15 | 60/60 | 5 | |
| NAR-M63-45 | M63 x 1.5 | 35-45 | 63 | 17 | 68/64 | 1 |
| NAR-M75-56 | M75 x 1.5 | 50-56 | 75 | 22 | 93/93 | 1 |
| NAR-M75-66 | M75 x 1.5 | 56-66 | 75 | 22 | 93/93 | 1 |
| NAR-M80-56 | M80 x 1.5 | 50-56 | 80 | 22 | 93/93 | 1 |
| NAR-M80 -66 | M80 x 1.5 | 56-66 | 80 | 22 | 93/93 | 1 |
