佳鑫能双锁紧金属电缆防水接头

公制螺纹M系列


广州佳鑫电器有限公司

咨询热线:020-36700481

公司网站:http://www.jx218.com

24H服务热线:13728087739

螺牙规格:

公制螺纹M (Metric)系列,符合欧盟规范。

产品材质:

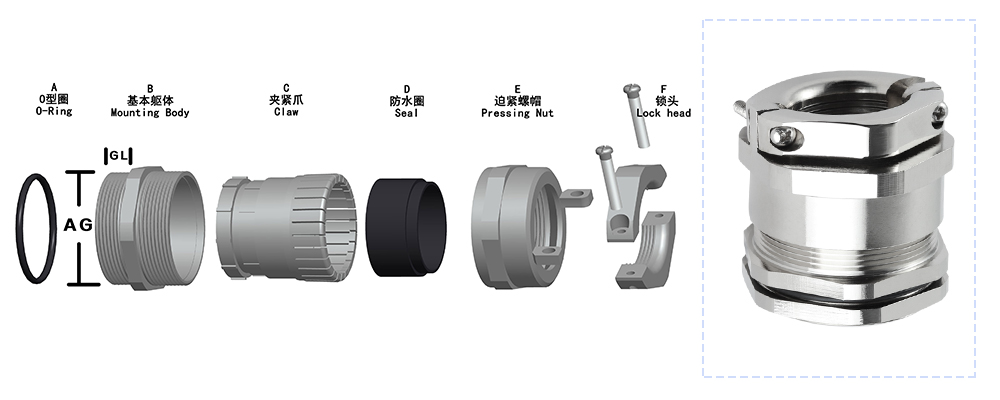

B、E、F部位采用黄铜镀镍制成,C部位采用尼龙塑料(PA)制成,A、D部位均采用丁腈橡胶(NBR)制成。产品认证:欧洲CE认证、欧洲 ROHS认证、欧洲 REACH认证防护等级:

在规定的卡口范围内,并使用〇型密封圈旋紧迫紧头,达到IP68-10巴压力。

工作温度:

静态:

-40℃到100℃,短时间达120℃。动态:-20℃到80℃,短时间达100℃。

螺纹长度:

短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上,长螺纹适合接合厚型机板。螺纹加长型可定制。

产品特性:

特殊夹紧爪与夹紧胶圈相扣之设计,配合迫紧螺帽装配省时便利,夹紧电缆范围大,抗拉力特强,可防水、防尘、抗盐水、耐酸碱、一般油脂以及一般溶剂。本金属双夹紧电缆防水接头特殊结构设计适用于对电缆进线抗拉有特别要求的场合。

使用方法:

金属电缆防水接头是电缆的配套产品,接头可将电缆锁紧,另一端可接入设备箱体上,也可以根据选用螺纹接入进出口为内螺纹的电动设备上。

更多选择:可根据客户实际需要,特别定制。需要订购时欢迎来电咨询。

Guangzhou Jiaxin Electric Appliance Co., Ltd

Hotline: 020-36700481

company website: http://www.jx218.com

24h service hotline: 13728087739

Screw specification: metric thread M series

Material: B, E and F parts are made of brass nickel plating, C parts are made of nylon plastics (PA), and Aand D parts aremade of nitrile butadiene rubber (NBR).

Product Certification: European CE Certfication, European ROHS Certification,European REACH Certification ProtectionLevel: Within the prescribed clamp range, and the use of O-ring screw tight, to achieve IP68-10 bar pressure.

Working temperature: Static: - 40 ℃ to 100 ℃ , short time up to 120 ℃.Dynamics: - 20 '℃ to 80 '℃, short time up to 100℃ thread length: Short thread is suitable for thin machine plate opening or equipment with internal thread, long thread issuitable for joining thick machine plate.Thread lengthening can be customized.

Product Characteristics: The special clamping jaw is matched with the clamping rubber ring. lt is convenient and

convenient to assemble with the tightening nut. The clamping cable range is large and the tensile strength is strong. It canbe waterproof, dustproof,salt water resistant, acid and alkali resistant Grease and general solvents. The special structuredesign of the metal double clamping cable waterproof joint is suitable for occasions where the cable incoming line hasspecial requirements.UJsage:Metal cable waterproofing joint is the matching product of cable. The joint can lock the cable,the other end can be connected to the equipment box, or according to the selection of threads, it can be connected to theelectric equipment with the import and export threads.

More choices: Customized according to customer's actual needs. Welcome to inquire when you need to order

双锁紧金属电缆防水接头

公制螺纹M系列


产品编号Item.No.螺牙规格Thread适用电缆Φ(mm)Cable Range螺纹外径AG(mm) Thread O.D机板口径(mm) Panel Mounting Hole螺纹长度GL(mm)  Thread length接合长度(mm) Joint length扳手径(mm) Spanner Size
NLB-M32-22M32x1.5(2)22-153232-32.294134
NLB-M40-28M40x1.5(2)28-224040-40.2104845
NLB-M50-38M50x1.5(2)38-325050-50.2105155
NLB-M50-38M50x1.5(2)38-325050-50.2105155
NLB-M54-38M54x1.5(2)38-325454-54.2135157
NLB-M63-44M63x1.5(2)35-276363-63.2135264/68
NLB-M63-44M63x1.5(2)44-376363-63.2135264/68
