佳鑫能PC防水透气阀
广州佳鑫电器有限公司创建于2003年,现拥有广州、东莞两大生产加工中心，是一家专业生产电气连接产品的企业，多年来坚持和高等院校的实验室合作进行产品开发与优化，不断提升产品创新力，努力开拓市场，使公司得以快速发展。 凭借雄厚的技术实力、完善的工艺流程、强大的生产能力已逐渐成为业界领先的防水连接方案提供商。严格的质量管理,先进的工艺作保障,不断提升产品质量，追求质量是佳鑫人永恒的主题。 公司秉承“为客户创造价值、为员工谋福利、为社会承担责任”的企业经营理念,持续改善经营管理模式。以高性价比的产品、专业的服务、锐意进取的决心和勇气更好地服务客户!
详细介绍

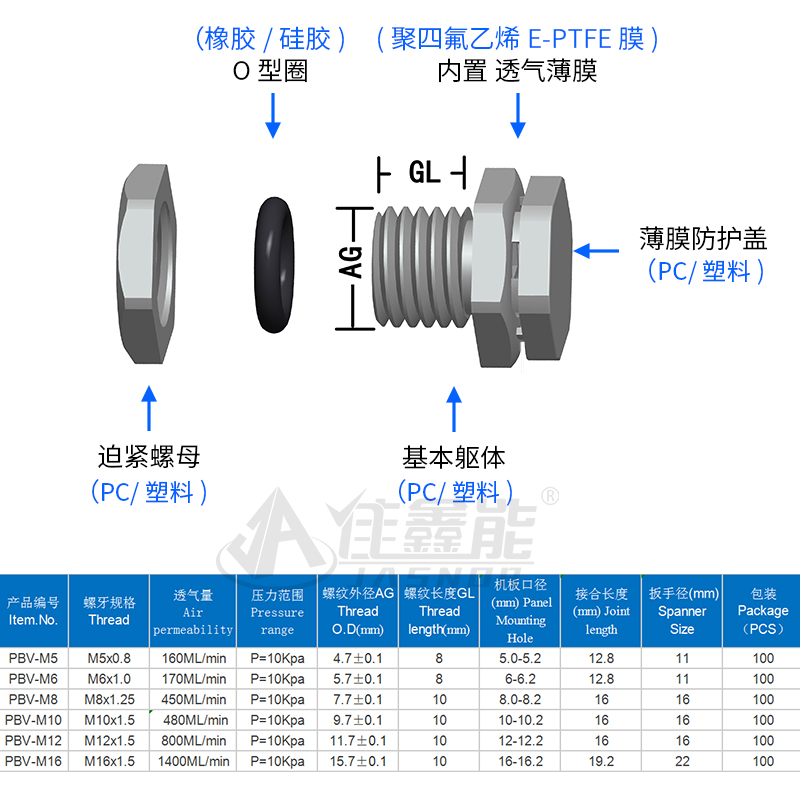

PC防水透气阀公螺纹M系列
咨询热线：020-36700481
公司网站：http://www.jx218.com
24H服务热线：13728087739
产品详细说明

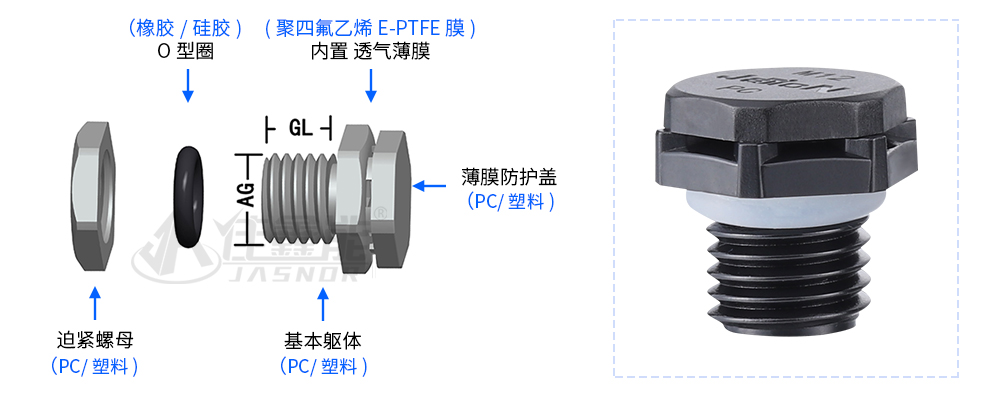

又名"螺纹型呼吸器",本产品膜材全部采用进口原料,外壳采用环保PC或尼龙材料、膜料与外壳通过特殊工艺:注塑一体成型加工而成，具有结构简单性能稳定,安装容易使用时间长,防水透气性能高等特征。
主要特性
·防水防尘等级IP67(可定制IP68);·接触液体后迅速恢复透气;
·高透气量能通过平衡压力降低机壳密封条的应用力;
·憎水、憎油结构的防护薄膜嵌入在塑胶壳体中，具有惰性、单一性、抗化学性以及抗紫外线的特点;·细微多孔结构的滤网甚至能阻止盐粒晶体;
·具有潮气和水气可透性;
·螺纹式外壳并配有高效、环保的密封环。(有特殊需要可定制密封环)
主要特性:
·保护敏感的电子、电器产品;·降低罩壳设计和制造成本;
·在极端环境下使用，可使设备延长寿命，且无故障免维护;·极大地降低由于各种腐蚀而引起的电子、电感产品故障;·极大地降低结雾和结露;
·通用件且安装简易（非标产品可定制);·能让密封箱体有着更好的散热、解压功效。
应用领域:
户外照明灯具,汽车电子,通信设备,太阳能光伏等行业。
颜色可选:
黑色、灰白色、深灰色，特殊颜色可定制。
Guangzhou Jiaxin Electric Appliance Co., Ltd
Hotline: 020-36700481
company website: http://www.jx218.com
24h service hotline: 13728087739
Product details
Also known as "threaded respirator", this product is made of imported membrane materials, and the shell is made of environmental friendly PC or nylon materials. The membrane materials and the shell are processed through a unique process: injection molding. It has the characteristics of simple structure, stable performance, easy installation, long service time, high waterproof and air permeability.
Main features
·Waterproof and dustproof grade IP67 (customizable IP68)· After contacting the liquid, the air permeability will be restored quickly;
·High air permeability can reduce the application force of the enclosure sealing strip by balancing the pressure;
·The protective film with hydrophobic and oil repellent structure is embedded in the plastic shell, which has the characteristics of inertia, simplicity, chemical resistance and UV resistance· The filter screen with fine porous structure can even prevent salt crystals;
·It has moisture and moisture permeability;
·The threaded shell is equipped with efficient and environment-friendly sealing ring. (seal ring can be customized for special needs)
Main features:
·Protect sensitive electronic and electrical products· Reduce shell design and manufacturing costs;
·When used in extreme environments, the service life of the equipment can be extended and maintenance free· Greatly reduce the failure of electronic and inductive products caused by various corrosion· Greatly reduce fogging and dewing;
·Universal parts and easy installation (non-standard products can be customized)· It can make the sealed box have better heat dissipation and decompression effect.
Application fields:
Outdoor lighting, automotive electronics, communication equipment, solar photovoltaic and other industries.
Colors available:
Black, gray white, dark gray, special colors can be customized.
