佳鑫能90度金属软管弯接头

90度金属软管弯接头

广州佳鑫电器有限公司

咨询热线：020-36700481

公司网站：http://www.jx218.com

24H服务热线：13728087739

螺纹规格:英制G( PF)牙，符合欧盟规范。

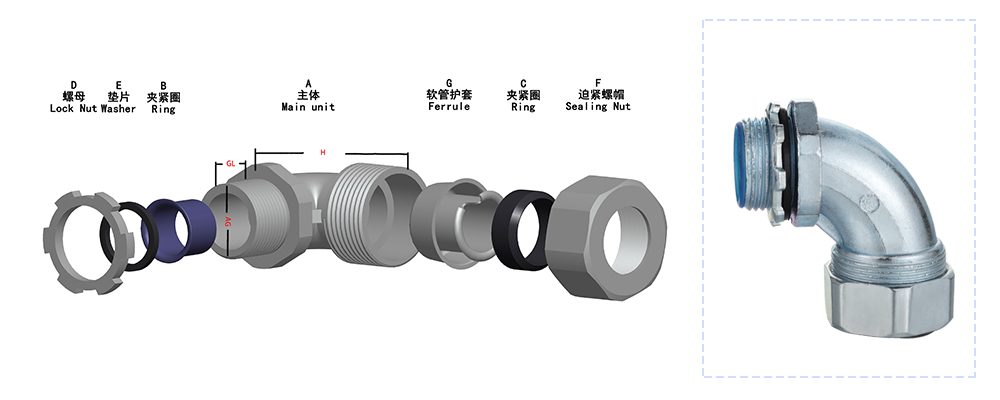

产品材质:AG.F部位采用优质加厚型锌合金制成、E.B.C部分采用丁腈橡胶制成、D为铁材料制成。

颜色:金属色（银白色)

温度:- 40℃~ +100℃、短时可达＋120℃

防护等级:IP65

产品特性:

1、接合后和箱体成95度，加厚型锌合金镀锌或镀铬、外型美观、结构紧密、强度高;

2、软管护套设计与软管相扣接紧之设计、装配省时便利，抗拉力强;

3、可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂;

4、除以下标准规格外，可按要求任意变动大小及螺纹标准;

Specification for metal hose joint thread: gb, Mefyic,PG

Product material: A.B.Fpart is made of high-quality and thickened zinc aly,C.E partis made of isie rutber, and D is made ofiron material color: metal color (silver white)

The temperature: - 40℃~ +100 ℃ , short time can be up to + 120 ℃

Protection levet: IP65

Product features:

1, thickening zinc alloy zinc or chromium plating, beautful appearance, compact structure, high strength

2.The design of flexible pipe jacket and the connection between flexble pipe, saving time and convenient assembly, and strongtensile strength.

3, waterproof, custproof, salt resistance, acid and alkali resistance, alcohol, oil, fat and general solvents

4, in addition to the following standard gauge, according to the requirements of arbitrary changes in size and thread standards

90度金属软管弯接头
